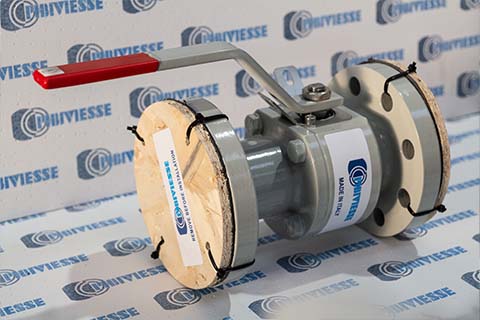

Side Entry Floating On-Off Ball Valve

The Side Entry Floating Ball valve is available in several design and material selections.

2 or 3 piece bolted body, soft or metal seated, firesafe, flexible design suitable to meet any application and specification requirement.

PDF Datasheet Download
Product design & range

Product Design & Range

  • 2 or 3 piece Split Body Bolted
  • Floating Ball
  • Size range from 1/2" to 8", pressure ratings ANSI 150# to 2500#
  • Flanged RF/RTJ, Socket-Weld and Butt-Weld end
  • Material grades: CS, LTCS, 316ss, 6Mo, Duplex, S-Duplex, Monel, Nickel Alloys, Titanium
  • Design Temperature range -46 / 230°C

Applications

The Side Entry design is the most commonly used Ball valve in the upstream, midstream and downstream sectors of the Oil & Gas Industry. Onshore LNG Plant and Offshore FLNG, Onshore Production, Refining & Petrochemical, Onshore Treatment, Offshore Platforms & FPSO, Onshore Storage, Water Service

Platform
Platform
FPSO
FPSO
FLNG
FLNG
Production
Production
Treatment
Treatment
Storage
Storage
LNG Plant
LNG Plant
Refining Petrol
Refining & Petrol
Water Storage
Water Storage
Main Design Features

Main Design Features

  • Full and Reduced Bore
  • Long Pattern
  • Bidirectional
  • Anti-blow out stem
  • Anti-static design
  • Fire Safe
  • Soft, Metal-to-Metal sealing
  • Fixed seat insert
  • See the enclosed Valve Data Sheet for the complete product design features and options available.
