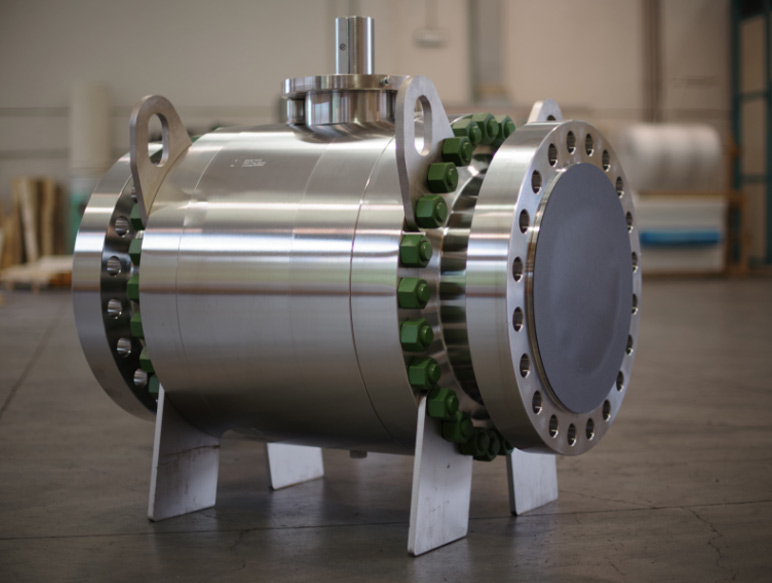

Side Entry Trunnion Mounted On-Off Ball Valve

One of PIBIVIESSE core products, the Side Entry Ball valve is available in several design options and material grades for Cryogenic, High Temperature, Subsea, DBB Double Ball and Control applications.

2 or 3 piece bolted body, soft or metal seated, firesafe, flexible design suitable to meet any application and specification requirement.

PDF Datasheet Download
Product design & range

Product Design & Range

  • 2 or 3 piece Split Body Bolted
  • Trunnion Mounted Ball
  • API 6D design, size range from 1/2" to 64", pressure ratings ASME cl. 150# to 2500#.
  • API 6A design, size range from 1.13/16" to 20", pressure ratings 2000 to 15000 psi.
  • Flanged RF/RTJ, Compact, Clamped Hubs and Butt-Weld ends.
  • Material grades: CS, LTCS, 316ss, 6Mo, Duplex, S-Duplex, Monel, Nickel Alloys, Titanium
  • Design Temperature range -46 / 230°C

Applications

The Side Entry Ball design is the most commonly used in the upstream, midstream and downstream sectors of the Oil & Gas Industry. Onshore LNG Plant and Offshore FLNG, Onshore Production, Onshore Transportation, Refining & Petrochemical, Onshore Treatment, Offshore Platform & FPSO, Onshore Storage, Power Generation, Hydropower, Desalination (Water Service)

Platform
Platform
FPSO
FPSO
FLNG
FLNG
Production
Production
Transportation
Transportation
Treatment
Treatment
Storage
Storage
LNG Plant
LNG Plant
Refining
Refining & Petrol
Water Storage
Water Storage
Power Generation
Power Generation
Main Design Features

Main Design Features

  • Full and Reduced Bore
  • Long Pattern
  • Spring Energized Floating seats
  • Bi-directional
  • Anti-blow out stem
  • Anti-static design
  • Emergency Sealant Injection on Stem & Seats
  • Fire Safe
  • Soft, Metal-to-Metal or Primary Metal Secondary Soft (PMSS) sealing
  • SPE (Self Relieving), DIB-1 or DIB-2 seat design
  • See the enclosed Valve Data Sheet for the complete product design features and options available.
